To 80mm Thermal Receipt Printer

NETUM 80mm Thermal Receipt Printer Auto cutter Restaurant Kitchen POS Printer
Paper printing that supports these sizes
Paper: 48mm/52mm/56mm/64mm/68mm/76mm/80mm
———————————————————————–
Thermal Paper Size:
Thermal Paper(57x30mm)
Thermal Paper(57x50mm)
Thermal Paper(80x30mm)
Thermal Paper(80x50mm)
Please open HERE link go to buy Thermal Paper: //www.aliexpress.com/item/4000028443221.html
———————————————————————–
Specifications

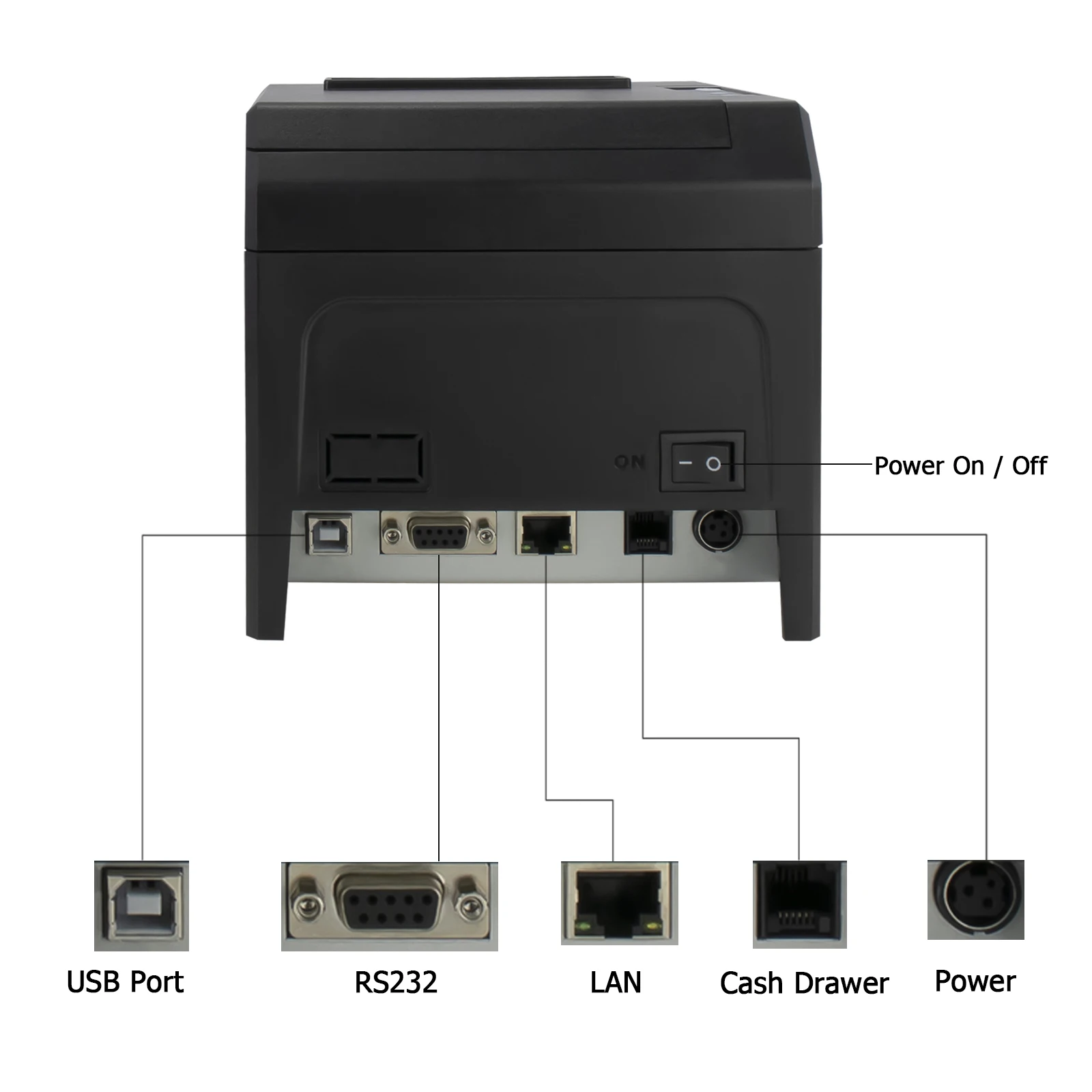

Interfaces Serial port/USB port/ Ethernet/Bluetooth/WIFI (optional)
Print Comand ESC/POS
Print Method Thermal Line Printing
Pirnt Speed 220mm/sec
No. of Total Dots 512 dots/Line
Auto Paper Cutter Full or Partial cut
Print Width 72mm
Print Font 12 x 24; 24x 24
Character Set Alphanumeric /Chinese Kanji
NV Flash 256K bytes
Compatible OS “Win9X/Win2000//Win2003/Win Vista/ Win 7/Window XP /win 8/Win8.1/Win10/linux/Android/IOS
Compatible with ESPON,SAMSUNG “
Paper
Type Roll Paper
Width 79.5±0.5mm
Roll Diameter 83mm
Paper Thickness 0.06-0.08mm
Electrical
Adapter Voltage DC24V/2.5A
Cash Drawer Control 12V/1A
Print Head Reliability
Print Reliability 100km
Physical

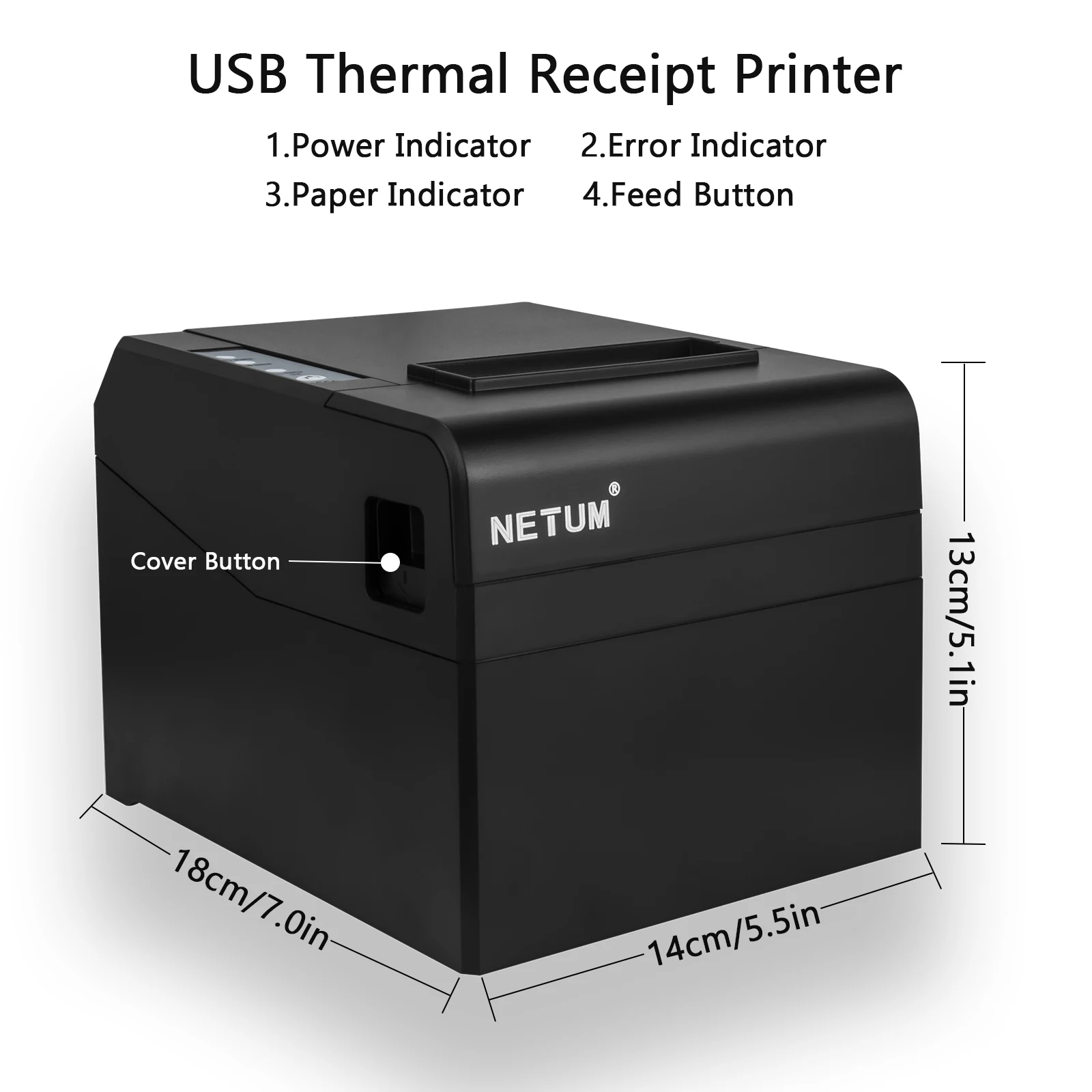

Dimension 19*14.5*14.5cm
Unit Weight 1.30kgs
Pieces Per CTN 8 Pieces
Color Black and White
CTN Dimension 48 x 46 x 36cm
Carton Weight 17kgs
Environmental
Temperature Working: 0 to 45 Degrees
Humidity Working: 10%-80%
Warantty 12 months at least
Other Features Bold printing / character adjusting / line spacing setting supported ; Support multiple 1D and QR code types printing
Accessories
USB Cable 1 x 1M Cable
CD Driver 1 Piece
Adapter 24V /2.5A
Thermal Roll 1 Piece
Manual 1 Piece
Power Cable 1 Piece
How to install printer driver?
1. Insert power cable into thermal printer.
2. Connect the printer with windows PC via USB cable.
3. Place thermal paper into printer.
4. Install printer driver by following the User Manual along with package.
Setting Guide:
Setting Guide:
How to connect printer with cash drawer?
1. Connect the cash drawer with printer through RJ11/RJ12 cable.
2. Install printer driver and set cash drawer from Printer Properties.
3. Set Open cash drawer before printing from Device Settings.
How to connect the 80MM printer with your software?
1. Please install the printer first in your windows PC.
2. Set the printer from your software “Printer Settings”.
3. If you don’t know where to add printer in your software, please consult with software supplier for guide.
FAQ:
Question: Will this printer print sticker labels?
Answer: No, this is thermal receipt printer, It cannot print sticker lables.
Question: Where I can download the printer driver?
Answer: Please check the CD that in the box.
